Flowmeter for Flow Measurement of Liquids

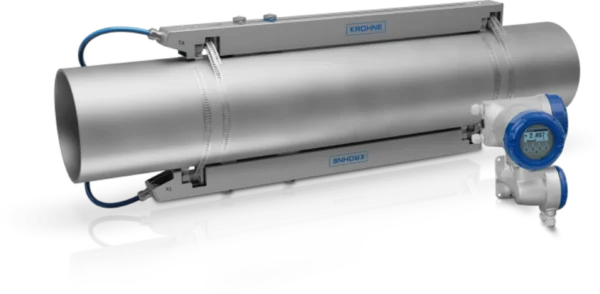

The OPTISONIC 6300 is a 2-in-1 in-line ultrasonic-type flow meter and level gauge for remote or close-coupled applications. With an integrated transducer, it provides reliable flow measurement without the need for inline sensor installation.

  • The stationary device, for installation at any location without process interruption or need to cut pipes
  • Up to +200°C / +392°F
  • Robust stainless steel sensor rail for pipes DN15…4000 / ½…160"
  • 4…20 mA, HART®7, Modbus, FF, Profibus-PA/DP
  • Robust industrial design to provide maximum reliability
  • Simple and easy sensor mounting point at pipeline
  • Minimal maintenance using the efficient re-greasing concept or solid coupling pads
  • Optimal accuracy due to factory flow calibration
  • X-mode dual-path sensor for extra reliability
  • Measurement range: 0.1...20 m/s (200:1)
  • Integrated thermal energy calculation
  • Extended temperature (XT) version available for all sensor rail sizes to measure liquids up to +200ºC / +392ºF
  • IP68 / NEMA 6P option
  • Namur NE107 diagnostics
  • With wall-mounted or field-mounted converter
